Customized High Voltage 32S Lithium Phosphate Car Battery For Industrial Vehicles

Shenzhen Herculesi Technology Co., Ltd.

Customized High Voltage 32S Lithium Phosphate Car Battery For Industrial Vehicles

  • 1
  • 2

Brand Name : HKANON

Model Number : 96V 100Ah

Certification : CE RoHS MSDS UN38.3

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS/Month

Delivery Time : 15 work days

Packaging Details : 1PC/ Wooden Case

Type : 96v 100ah Lithium Iron Phosphate Battery Pack

Size : Customized Available

Case : Metal Iron Box IP65

Rated Capacity : 100Ah

Rated Voltage : 102.4V

Cell Combine : 32S1P

Contact Now

32S LiFePO4 96v 100ah Lithium Iron Phosphate Battery Pack for EV

Notice

Battery can be customized as your requirement

We focus on 3.2V-360W LiFePO4 battery pack .

Battery solutions will be provided to you if you contact us .

Battery BMS parameters:
Protection circuitry for Li-Ion will support currents up to
100A continues with:
Over current protection. (OCP)
Short circuit protection. (SCP)
Over voltage protection. (OVP)
Under voltage protection. (UVP)
Over temperature protection. (OTP)
Cells active balancing, With fault limitation.
BMS will support RS-485 & SMBUS & CANBUS & I2C communication, to enable monitoring of battery status:
Pack Voltage and Current (including current direction)
Pack actual capacity / fuel gauge (SOC%)
Pack health – related to max capacity of the pack when
new (SOH%)
Pack Error Status, for all protection parameters;
balancing status, OCP, SCP, OVP, OTP, UVP

Battery modules

Total 8 12V 100Ah in series to 96V 100Ah .

Each module:4S30P to 12V 100Ah

Applications

Lithium for Industrial Vehicles and Heavy Duty applications
electric industrial vehicle
Industrial vehicles require very high energy capacity to be operational at any time and over a long operating period.
HKANON has robust products that meet the industry’s high standards.
The modular batteries designed by our teams are able to equip a few kilowatt hours for small industrial equipment, up to several Mega-Watt hours for heavy industry.

Application Examples :

Application Combine Size Weight
Standalone device 12V 330Ah 4.2kwh 1S3P / 12.8kgs
Industry vehicle 48V 220Ah traction pack (11.2KWh) 4S2P / 125.6kgs
Mini-van 96V 330Ah traction pack (34KWh) 8S3P / 376.8kgs
Off-grid 48V1100Ah solar battery(50kwh) 4S10P / 628kgs

Each 12V Lithium-ion module has a built-in BMS that monitors operating conditions (temperature, over voltage, under voltage, etc..). An external BMS ensures optimal operation by a real-time monitoring of each module.

HKANON batteries embeds Lithium Iron Phosphate cylindrical cells (LiFePO4) that offers a high level of safety and long lifespan. HKANON solutions advantageously replace Lead acid solutions for many applications (Electric vehicles, off-grid or micro-grid systems, energy storage, etc.).

Work & storage conditions
Charge temperature: 0 °C to 50 °C
Discharge temperature: -20 - 75℃
Storage Temp: -30 - 45℃ (3 months), -30 - 25℃ (1 Year)
Humidity Conditions: RH < 90%

Specifications LiFePO4 96V 100Ah Battery Pack
Technical details
Nominal voltage 102.4V
Nominal capacity(C/5, 23°C) 100Ah
Storage 100kwh Lithium Ion Battery
Cell Inside

4S30P to 12.8V 100Ah each module,

8PCS 12.8V100Ah in series to 96V 100Ah

Rated Discharge Current 100A
Peak Discharge Current 150A
Rated power 10kw
Chareg Cut-off Voltage 134V
Discharge Cut-off Voltage 86.4V
Max Continuous Charge Current 0.2C-20A
Peak Charge Current 0.4C-40A
Charge Temperature Range 0-45C
Discharge Temperature Range -20-60C
Pack size 260L*158W*246H or 270H*156W*348Lmm choices
Charging cycles 2000 cycles DOD>80%
Application Lithium for Industrial Vehicles and Heavy Duty applications
electric industrial vehicle
Weight(+/- 2%) /
Case IP65 Plastic Box

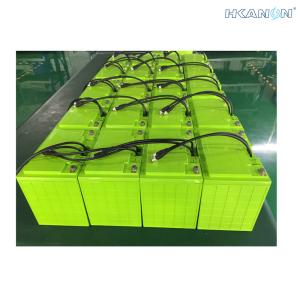

Pictures

Customized High Voltage 32S Lithium Phosphate Car Battery For Industrial VehiclesCustomized High Voltage 32S Lithium Phosphate Car Battery For Industrial VehiclesCustomized High Voltage 32S Lithium Phosphate Car Battery For Industrial Vehicles

Customized High Voltage 32S Lithium Phosphate Car Battery For Industrial Vehicles
